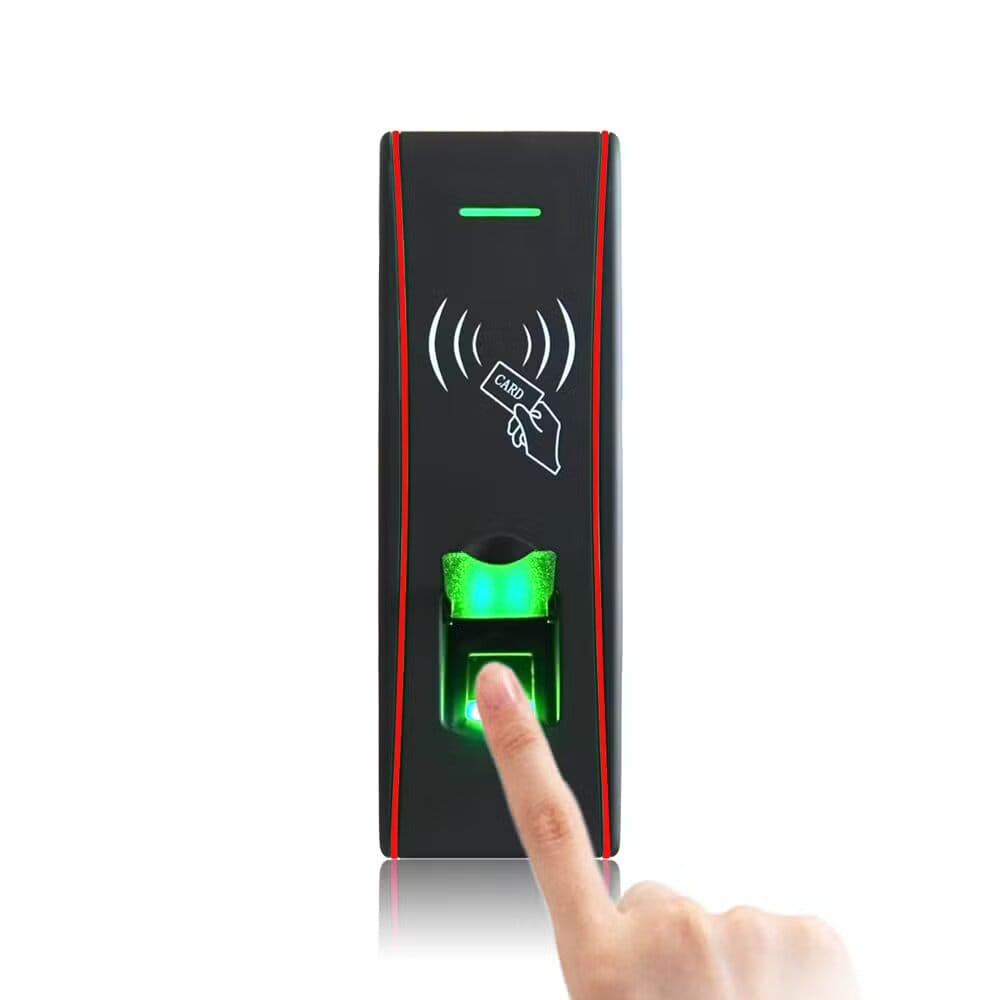

F16 IP65 Rated Outdoor Fingerprint Access Control Terminal

F16 is a fingerprint access control terminal with an integrated proximity
reader (EM). It is IP65 rated, which enables it to resist water,
dust and other outside damages. It can be installed easily on your
network with Ethernet and RS485 serial ports. Weigand-OUT
port allows reader connection to ZK or any 3rd party access control

panel panel. Using the Weigand-In port, you can connect to any card
reader for authentication at both entrance and exit.
The PULL firmware and ZKAccess3.5 are the standard configurations
that make F16 more versatile and powerful. Users can be registered
on the device by the Management Card or by connecting with
ZKAccess3.5 software by TCP/IP.

Features:

Rugged Structure for  Outdoor Installation and Extra Durability

• IP65-rated waterproof and dustproof structure

Slim and Elegant Design

• One of the world’s smallest
fingerprint terminals
• Sleek and slim design for
narrow spaces

Fast and Accurate Fingerprint Algorithm

• 1 touch-a-second user
recognition
• Store 3,000 fingerprint
templates, 30,000 cards and
100,000 transactions

Easy Installation and Connectivity

• Wiegand input & output
• Network interface by
TCP/IP or RS485

Full Access Control Features

• Anti-passback
• Access control interface for
3rd party electric lock, door
sensor, exit button, alarm

For Software Developers

• Free PULL SDK and
development tools
are available for
developers/partners

Specifications:

• Fingerprint Sensor ZK Optical Sensor
• Algorithm Version ZKFinger V10.0
• Communication TCP/IP, RS485
• Fingerprint Capacity 3,000 Fingerprints
• Card Capacity 30,000 Cards
• Log Capacity 100,000 Transactions
• RF Card EM(standard)/Mifare(optional)
• Authentication Finger/Card
• Wiegand Signal Wiegand input&output
• Ingress Protection Rate IP65
• Operating Voltage 12VDC 3A
• Operating Temperature 0~ 45 °C (32°F ~ 113°F)
• Dimension 62.5mm×185mm×41.5mm (W×H×D)

Optional Accessories
