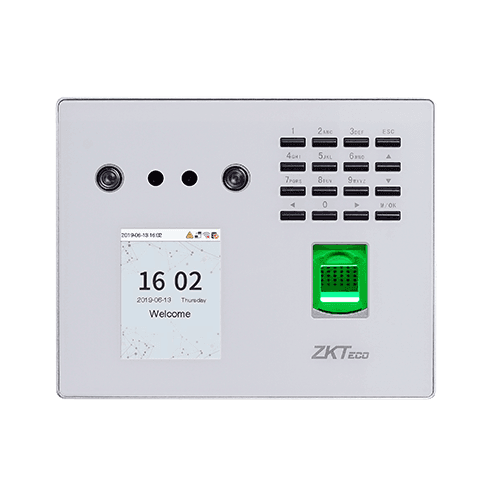

MB40-VL Hybrid Biometric Time Attendance & Access Control Terminal

MB40-VL Hybrid Biometric Time Attendance & Access Control Terminal

MB40-VL is a multi-biometric identification terminal which features ZKTeco’s innovative Enhanced
Visible Light Facial Recognition Technology. The device with the latest technologies can perform
recognition in the distance from 0.3m to 1.5m and will function automatically when faces are detected
to deliver higher recognition quality in terms of speed and accuracy than the previous
near IR facial recognition. Also, with the world’s cutting-edge 3D Neuron Fingerprint Algorithm.
Comprehensive support in mainstream card modules and additional support WIFI make the product
best fit into different work environments and customer’s needs

Features

MB40-VL
Hybrid Biometric Time Attendance & Access
Control Terminal with Enhanced Visible
Light Facial Recognition
• Enhanced Visible Light Facial Recognition
• Anti-spoofing algorithm against print attack (laser, color and B / W photos), video attack and 3D mask attack
• Multiple Verification: Face / FingerPrint / Card / Password
• Optional Multiple card modules: 125KHz ID Card & 13.56MHz IC Card
• Supplement light with adjustable brightness

Visible Light Facial Recognition Embedded

Recognition distance 1m long and extra wide angle recognition

The recognition distance has been greatly extended up to 1 meter long,
which significantly improves the maximum traffic rate. While most of the algorithms
only support 15-degree angle facial recognition, ZKTeco supports 30-degree
angle facial recognition.

Specifications

• Display 2.8-inch TFT Screen
• Face Capacity 3,000
• Fingerprint Capacity 3,000
• Card Capacity 10,000
• Transactions 100,000
• Communication TCP/IP, WIFI, USB Host
• Standard Functions ADMS, Work Code, DST, Self-Service Query, Automatic Status Switch, T9 Input,
• Camera, 9-digit user ID, Multiple Verify Mode, Schedule Bell
• Dual Core CPU
• Memory 512MB RAM / 8G ROM
• 2MP WDR Low Light Camera
• Adjustable Light Brightness LED
• Operation System Linux
• Access Control Interface 3rd Party Electric Lock, Door Sensor, Exit Button
• Optional Functions 125KHz ID / 13.56MHz IC Cards
• Algorithms ZKFace V5.8 & ZKFinger V10.0
• Face Recognition Speed ≤1s
• Power Supply 12V 1.5A
• Operating Humidity 20% – 80%
• Operating Temperature 0 °C – 45 °C
• Dimensios 170*138*38.55mm
• Compatibility BioTime8.0
