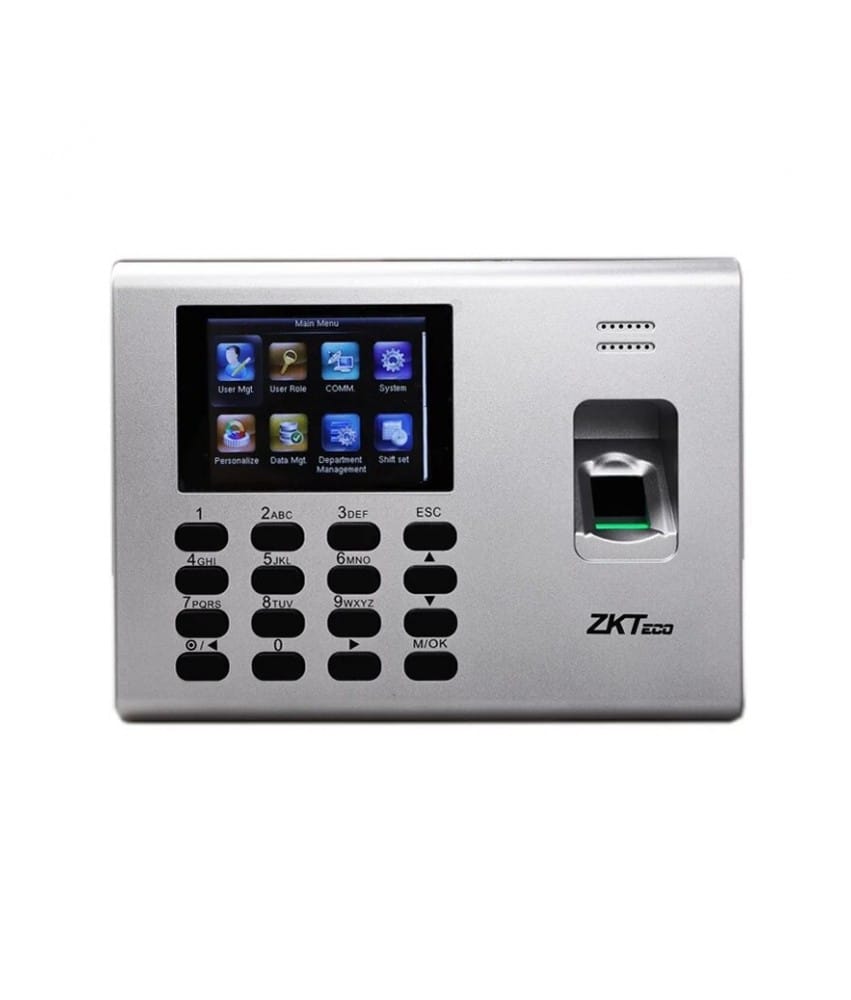

UA860 Fingerprint Time & Attendance and Access Control Terminal

UA860 Fingerprint Time & Attendance and Access Control Terminal

UA860 is a 2.8-inch color screen biometric terminal for Time & Attendance and Access Control (primary) applications. It adopts a Bio ID fingerprint collector for excellent recognition and internal WiFi for convenient
communication. Users can manage data via TCP/IP, WiFi, and USB host ports for data up/download to avoid the risk of accidental deletion. Besides, optional WDMS can help you manage remote data with our ZKTime. Net 3.0.

Features

• Wi-Fi: The WiFi module is integrated. It works on the 2.4G radio band and meets the IEEE 802.11b/g/n standards.
• USB: Support USB host connection to achieve data backup and management while the device is standalone
•  WDMS: Optional for devices worldwide using. Solve the device’s capacity limitation through networking via
• HTTP server. Mondial devices can be connected and upload and backup data automatically. This is helpful for device management and monitoring.
•  BioID: Using BioID Fingerprint Collector for excellent recognition rate. Dry, moist, or rough fingerprints can work well.

Specifications

User Capacity: 3000
Fingerprint Capacity: 1000
ID Card Capacity: 3000 optional
Record Capacity: 50,000
Display: 2.8’ color screen
Communication: TCP/IP, WiFi, USB-host
Standard Functions: 9 Digit User ID, T9 Input, SMS, DST, Self-Service Query, Automatic Status Switch, Ring bell
Optional Functions: ID/Mifare, WDMS, RS232 External Printer
Access Control Interface: 3rd Party Electric Lock, Exit Button
Software: ZKTime. Net 3.0
Power Supply: DC 12V/1.5A
Dimension: 185*137*38.2mm (LxWxT)
Operating Temp:. 0 °C – 45 °C
Operating Humidity: 20% – 80%

Configuration

Interface
